Diamond Lapping Compounds: Engineered for Precision Finishing
DIANAMIC® provides high-performance diamond lapping compounds, pastes, and slurries designed for critical lapping, polishing, and surface preparation. To ensure a perfect match for your specific material and finish requirements, we offer M (Oil Soluble), U (Oil Soluble, lower viscosity), and W (Water Soluble) bases across a comprehensive range of micron sizes and concentration levels, allowing you to optimize performance for any production environment.
Certified micronized diamond quality
Diamond Lapping Compound, Slurries, and Pastes Engineered to Exacting Standards
DIANAMIC® supplies diamond lapping compounds, slurries, and pastes manufactured in North America and produced to exacting standards. We test and select specific grades of micronized virgin diamond to ensure exceptional quality, durability, and performance across a wide range of polishing and lapping conditions.
Every batch is evaluated and certified using a proprietary particle analysis system that combines statistical and video analysis for precise evaluation. Lot-number test results are available upon request to support your quality control measures, including ISO documentation requirements.
Diamond Lapping Compound Bases: M, U, and W Options
DIANAMIC® offers multiple compound bases engineered to integrate seamlessly with your process. Whether your application demands high-temperature stability for heavy-duty cycles, improved flow for high-speed lapping, or a water-soluble formulation for parts requiring subsequent plating or coating, these bases provide the consistency, finish quality, and process compatibility your production requires.
M-Based Lapping Compounds
M-based compounds are engineered for demanding polishing and lapping environments where thermal stability is critical. They maintain consistency at processing temperatures up to 400°F, ensuring the compound performs reliably during heavy-duty use and extended cycles without breaking down.
This stability makes M-based compounds the preferred choice for applications requiring controlled cutting action and predictable behavior under fluctuating heat conditions. By resisting thinning or drying out, the base keeps the diamond abrasive properly suspended for a more uniform finish.

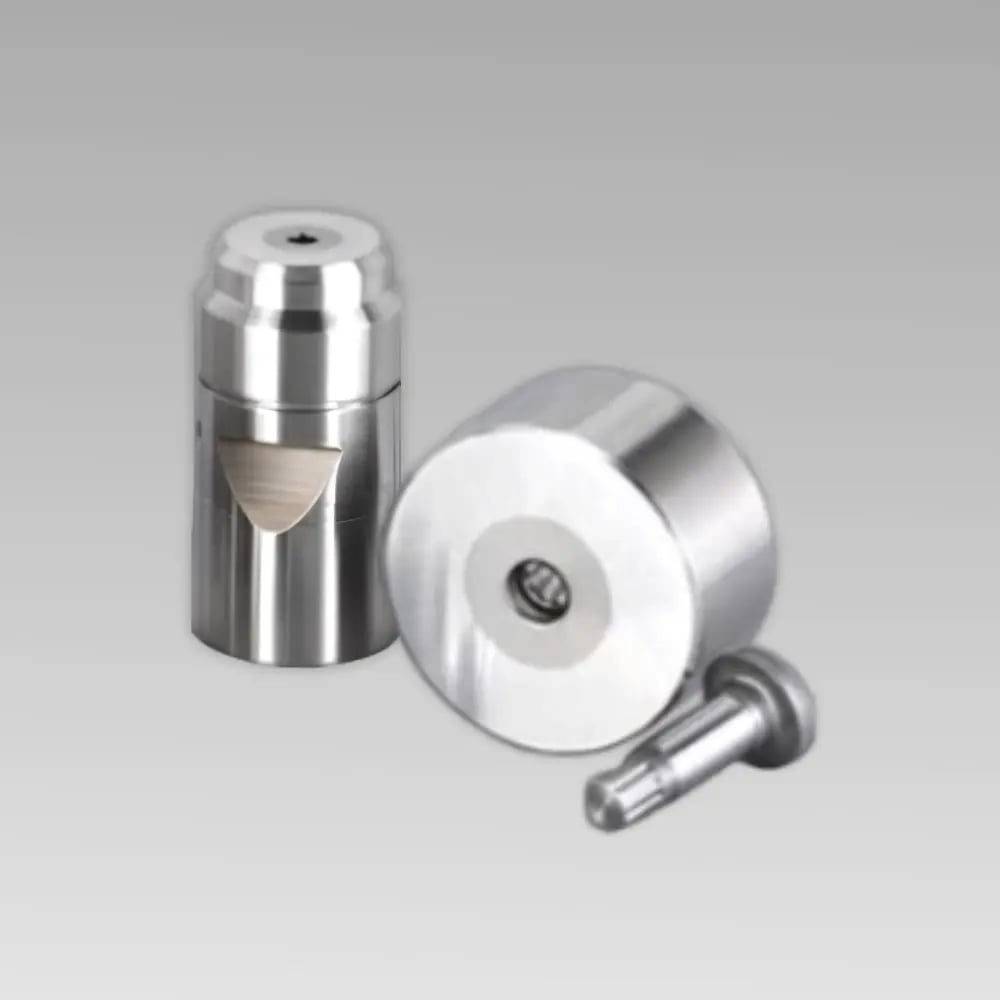

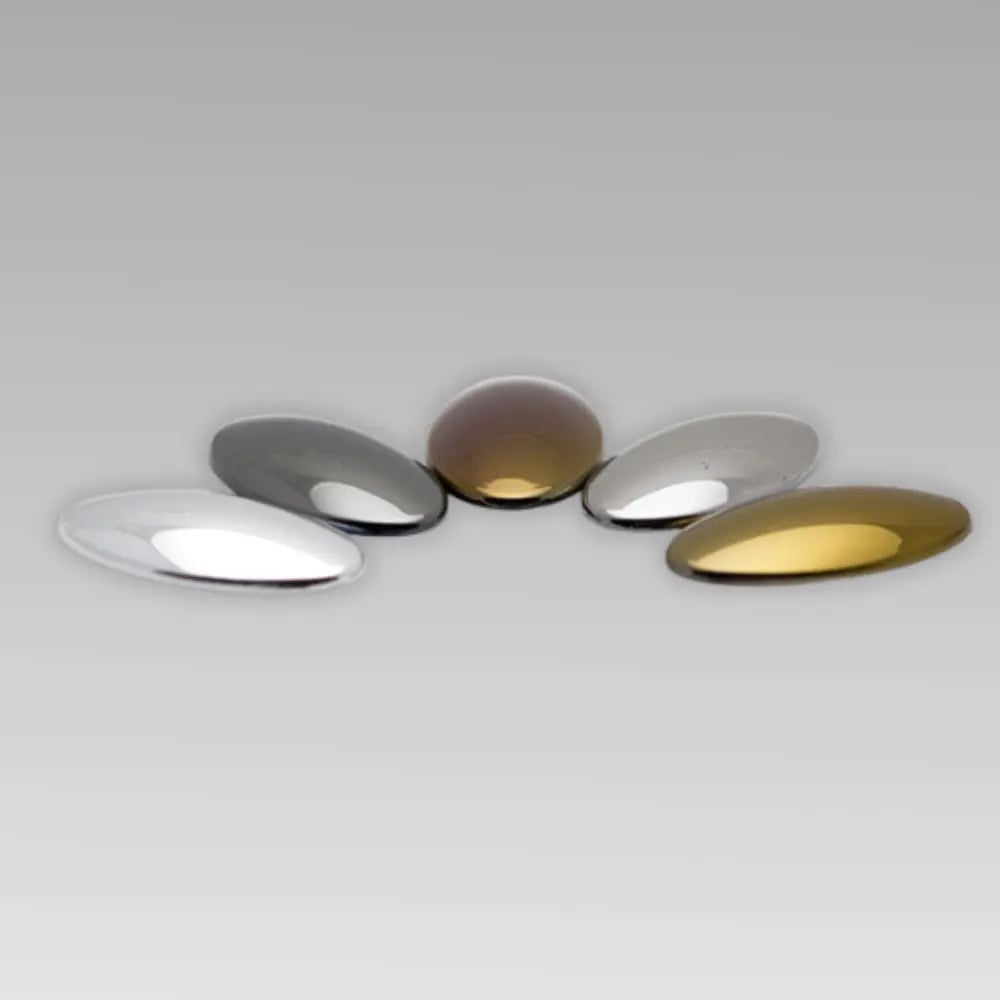

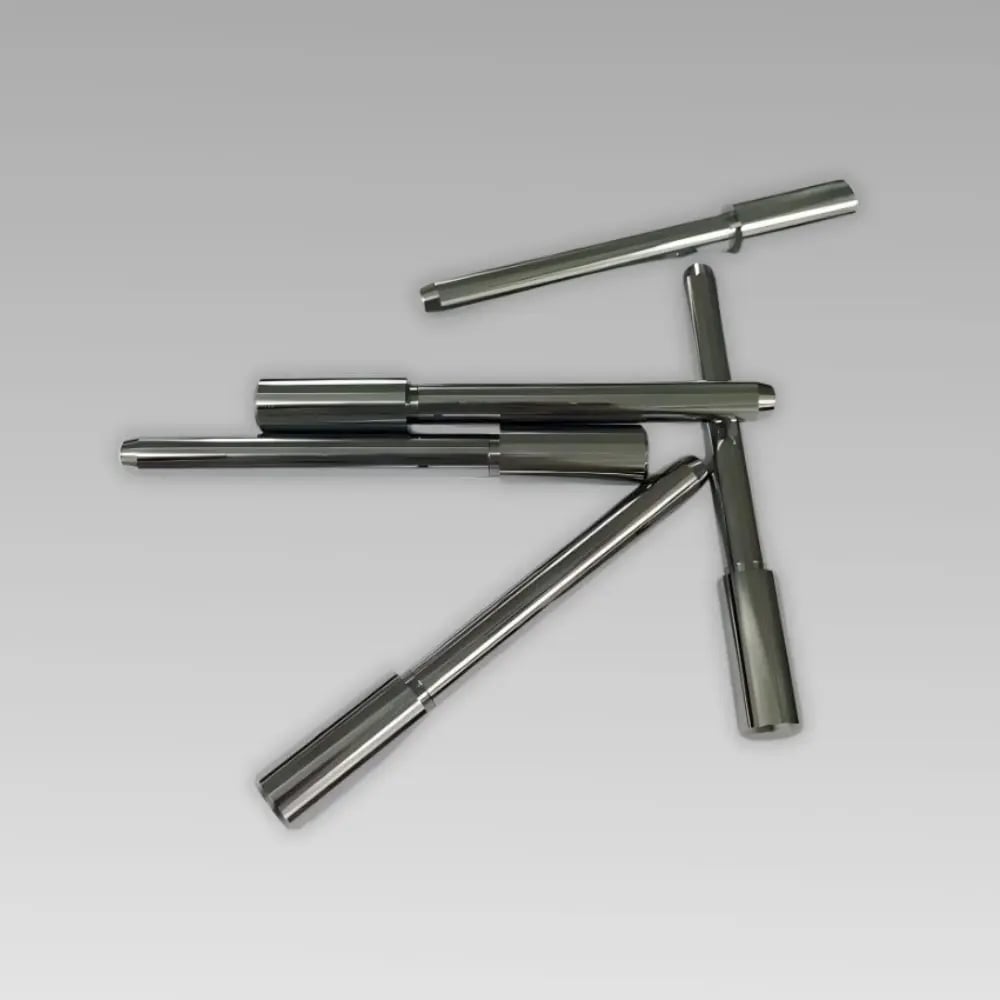

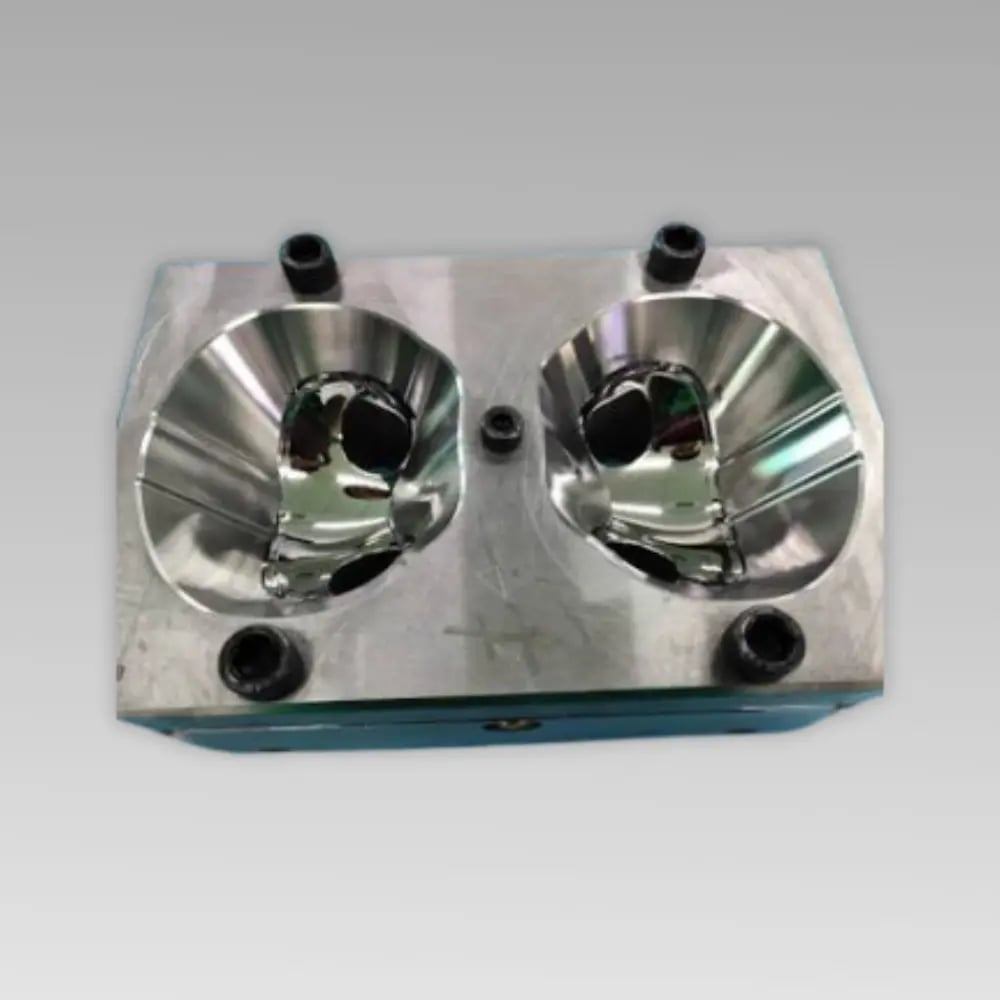

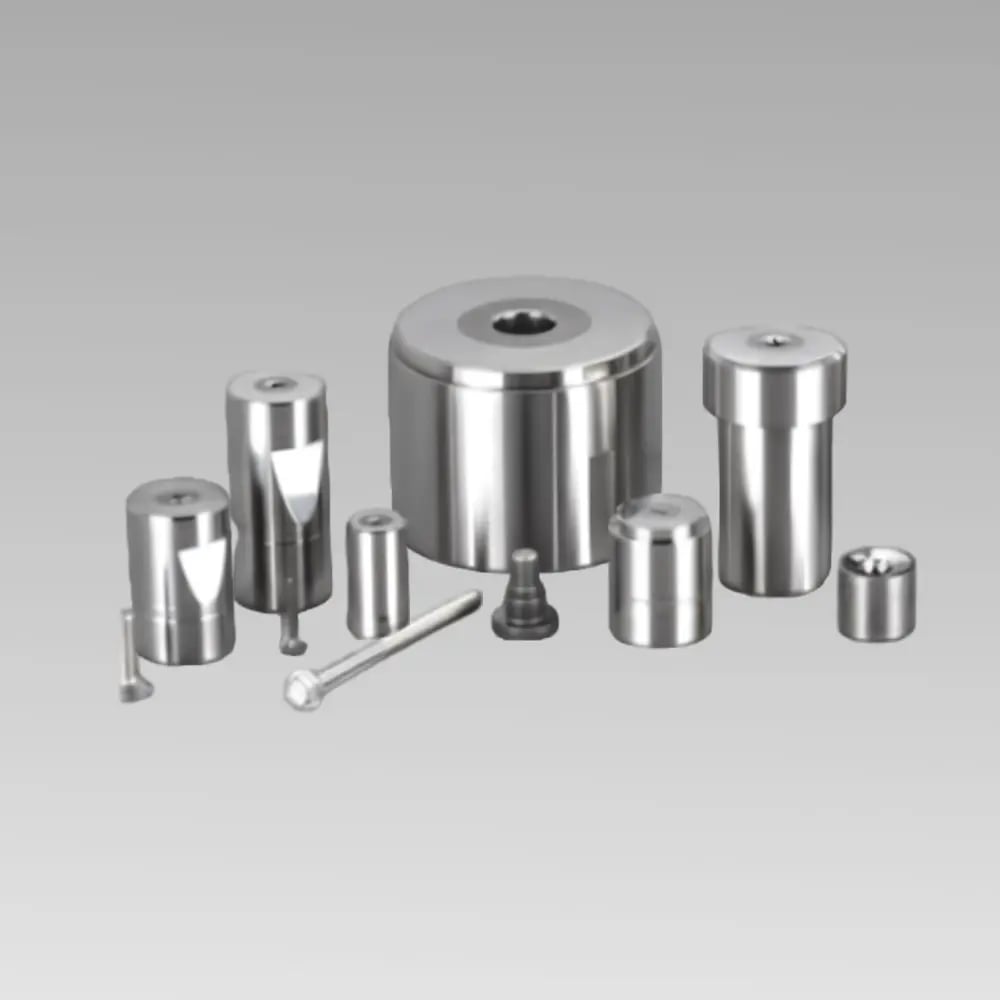

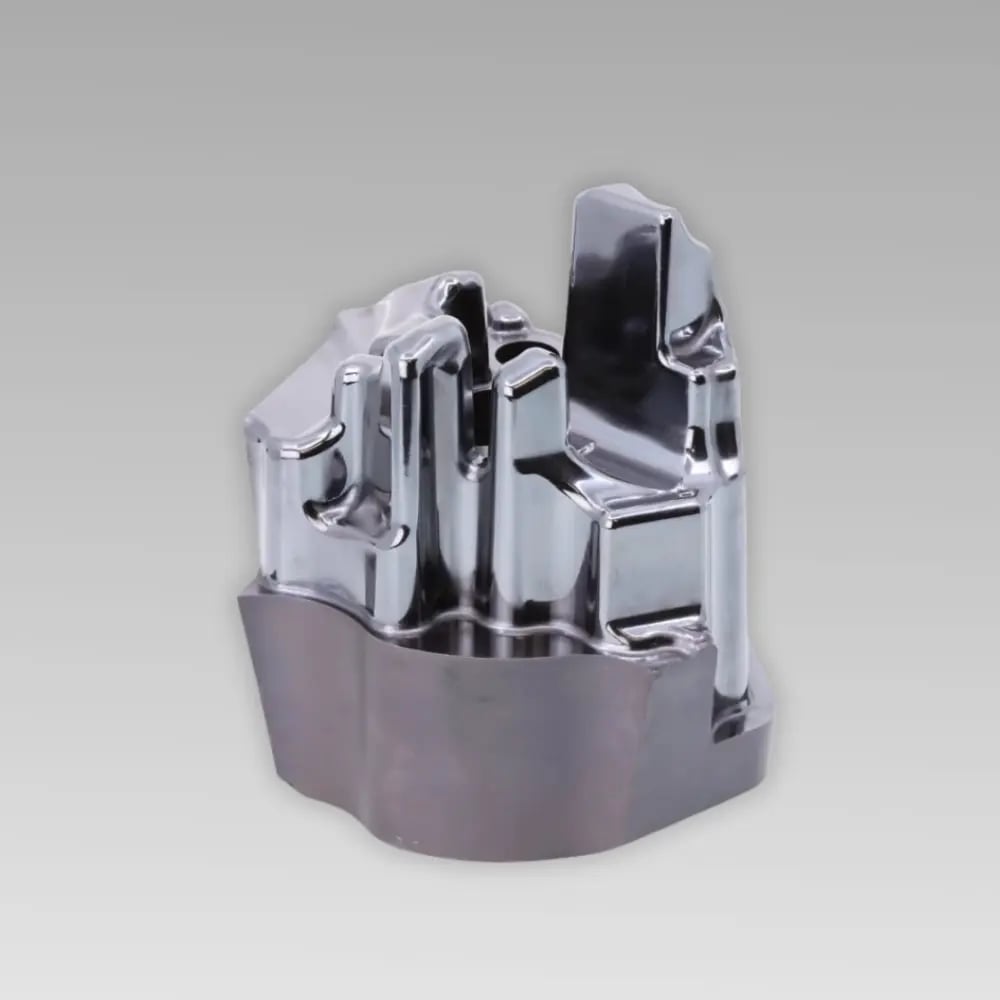

Suggested applications include the precision finishing of dies and molds, as well as the high-tolerance polishing of optical, ceramic, and electronic components.
U-based compounds are formulated with a lower viscosity than our M-series, specifically designed to improve flow and ensure the compound spreads evenly across the work surface. This enhanced "spreadability" allows for more uniform coverage, ensuring that the diamond abrasive is always where it needs to be during the polishing cycle.
That added flowability makes U-based compounds exceptionally well-suited for high-speed lapping applications. This characteristic supports consistent abrasive delivery and smooth movement, which are essential for maintaining uniform finishes and reducing interruptions in high-output production environments.
Suggested applications include the precision finishing of dies and molds, as well as the high-performance polishing of optical, ceramic, and electronic components.
W-based compounds are water-soluble and engineered for applications where surface preparation is critical prior to secondary processing. This specialized base is designed to deliver high-performance finishing while ensuring the workpiece remains chemically compatible with downstream requirements.
These compounds clean up easily without the need for thinners or aggressive solvents, significantly reducing the risk of residue that can compromise plating or coating adhesion. Additionally, the W-based formula is specifically developed to minimize substrate impregnation, ensuring a cleaner surface and more consistent results during final finishing stages.
Suggested applications include preparing tools and dies for electroplating, as well as surface conditioning for chemical (CVD) or physical (PVD) vapor deposition coating processes.
Diamond Lapping Compound Concentrations by Carat Weight
DIANAMIC® compounds, pastes, and slurries are available in a comprehensive range of densities, including extra light, light, medium, heavy, extra heavy, and super heavy concentrations. Our standard concentrations by carat weight are among the highest in the industry, ensuring maximum cutting efficiency and long-lasting abrasive performance.
To help you select the most efficient density for your process, we offer the following guidelines:
Standard Concentration: Ideal for general-purpose polishing and finishing where a balance of cut rate and economy is required.
High Concentration: Designed for faster stock removal and more demanding cycles, providing a higher density of diamond particles for increased productivity.
Extra High Concentration: Formulated for the most critical applications requiring maximum cutting speed and the highest possible finish consistency in the shortest time.
For specialized applications, custom carat weight concentrations can be engineered and supplied by special order. This flexibility allows you to fine-tune the abrasive density to match your exact material removal rates and surface finish targets.
Consult with a Diamond Specialist
Explore Our Full Range of Diamond Lapping Compounds, Slurries, and Pastes
Have questions about selecting the ideal base, micron size, or concentration for your process? Contact DIANAMIC® with your application details—we will help you identify the optimal diamond lapping compound, paste, or slurry to match your specific finish requirements, materials, and production environment.
Diamond Lapping Compound: Applications and Product Options
DIANAMIC® diamond pastes, compounds, and slurries support a broad spectrum of precision finishing needs, including production lapping, edge preparation, final-fit applications, and water-based processes. Use the reference below to identify common applications, compatible thinners, packaging configurations, and the standard micron grades available for our pastes and compounds.
Compound thinner specifically designed and manufactured for thinning ‘M’ and ‘U’ based compounds is available. The thinner is non-toxic and non-hazardous and offers an excellent method to spread the diamond media evenly while keeping it moist and offering efficient clean up. This thinner works well with other manufacturers’ media.

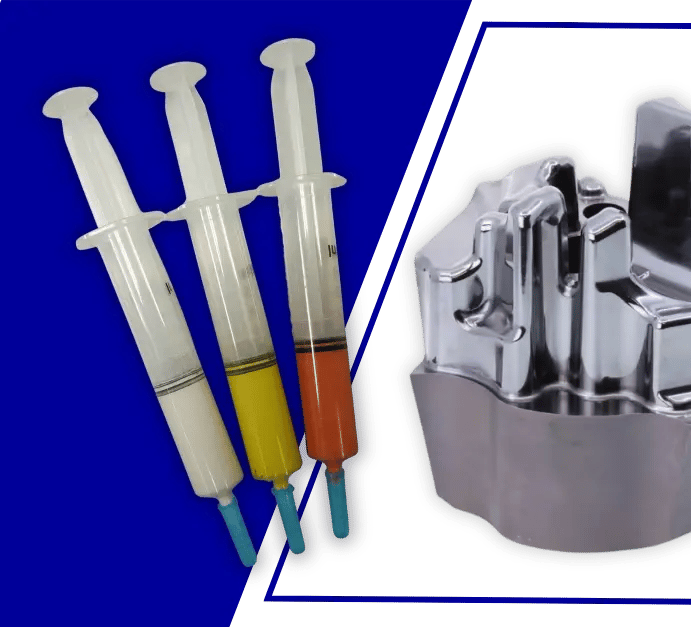

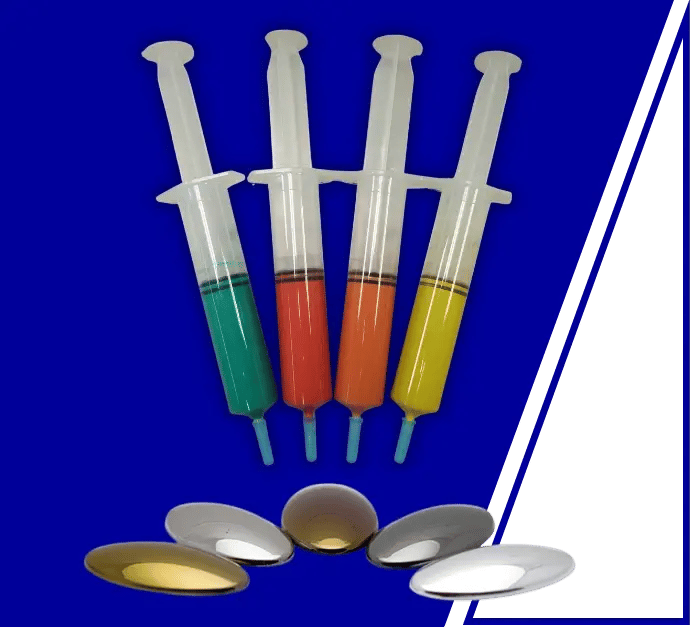

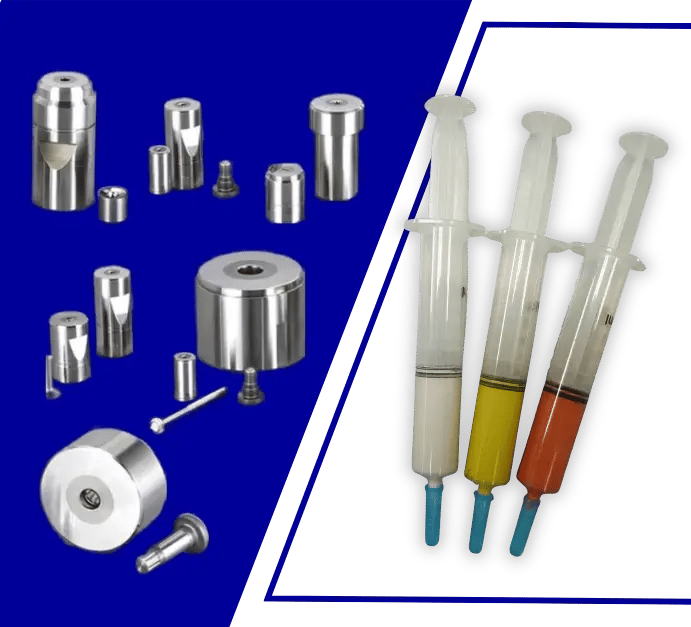

Compound and lapping paste is available in standard 5-gram and 18-gram tubes or jars. Larger containers and dispensers are available upon request, such as 454-gram tubs (1 pound).
Thinner is available in 200cc, 500cc, or 4-liter bottles.
Slurries are available in 500-gram, 1000-gram, and 5000-gram containers.
Share your material, process, and finish goals, and we'll recommend the best base, micron size, and concentration for your application, whether you're lapping for finish consistency or preparing parts for plating or coating.
