Understanding the Manufacturing Factors Behind Tool Performance
Two electroplated Diamond or cBN tools may appear identical on paper. They may share the same dimensions, superabrasive type, mesh size, and intended application, yet perform significantly differently once they reach the production floor.
Manufacturing engineers, grinding specialists, and production managers often encounter unexpected variations in tool life, surface finish, cutting efficiency, and consistency when changing suppliers. While these differences are frequently attributed to the Diamond or cBN itself, the reality is that the manufacturing process behind the tool can have an equally significant impact on performance.
Understanding what occurs during the electroplating process helps explain why seemingly identical tools often deliver very different results.
The Foundation Begins with the Superabrasive
The performance of any electroplated tool begins with the quality of the Diamond or cBN superabrasive being used.
Factors such as crystal structure, particle toughness, shape and consistency, friability, fracture behavior, and quality grading all influence how efficiently a tool grinds and how long it maintains its performance.
Another important consideration is whether the superabrasive is new, reclaimed, or sourced from non-quality-assured suppliers. During grinding, Diamond and cBN crystals are subjected to significant mechanical forces. Properly engineered superabrasives are designed to micro-fracture and, in some applications, macro-fracture in a controlled manner. This controlled fracturing continuously exposes new sharp cutting edges that generate grinding swarf and maintain grinding efficiency.
When a crystal fractures predictably, it remains sharp and productive. However, if the crystal structure has been compromised through previous use, excessive damage, or poor-quality manufacturing, fracture behavior can become unpredictable. In some cases, crystals may fracture prematurely. In others, they may dull and round over rather than exposing new cutting edges. When this occurs, swarf generation decreases, wheel loading increases, grinding efficiency declines, and tool performance suffers.
While reclaimed superabrasives may appear acceptable under casual inspection, their fracture characteristics have already been influenced by previous service conditions, making long-term performance less predictable.
For manufacturers seeking consistent grinding performance, superabrasive quality remains one of the most critical variables in the entire process.
Superabrasive Purity Matters More Than Many Realize
Electroplated tools are often specified with a precise superabrasive type and mesh size to achieve a desired grinding action and surface finish.
Even small amounts of contamination can influence performance. Mixing mesh sizes can alter cutting characteristics and surface finish. Likewise, introducing unintended superabrasive types can affect wear behavior, grinding efficiency, and tool life.
In precision manufacturing environments, maintaining strict separation between Diamond and cBN, as well as between individual mesh sizes, helps ensure that the finished tool matches its intended specification.
When superabrasive purity is maintained throughout the manufacturing process, engineers can expect greater consistency from tool to tool and order to order.
Why Mesh Size Matters During Electroplating
Each Diamond and cBN mesh size presents a unique electroplating challenge.
A coarse Diamond crystal requires a substantially different amount of nickel encapsulation than a fine-mesh crystal. In electroplated tooling, the goal is typically to encapsulate approximately 50% of the crystal while leaving the remaining portion exposed for grinding.
Achieving this balance is critical. If too little nickel is deposited, the superabrasive may not be adequately retained and can be prematurely ejected from the tool during use. If too much nickel is deposited, the crystal becomes over-encapsulated, restricting its ability to fracture properly and expose new cutting edges.
Grinding efficiency depends on the ability of Diamond and cBN crystals to continuously create new sharp cutting points through controlled micro-fracturing and macro-fracturing. When excessive nickel coverage restricts this process, the crystal may become ineffective, swarf generation may decrease, wheel loading may increase, and grinding performance may deteriorate.
The amount of nickel required to achieve proper encapsulation is governed by Faraday’s Law, which establishes the relationship between deposited metal mass, current, and plating time. While the scientific principles are well established, successful implementation requires extensive process development and validation.
Over decades of manufacturing experience, plating schedules can be developed for specific mesh sizes using a combination of Faraday’s Law and empirical performance data. By controlling current density, amperage, and plating time for each mesh size, manufacturers can more consistently achieve the desired level of superabrasive retention and exposure.
Because different mesh sizes require different plating parameters, maintaining precise process control becomes one of the most important factors influencing electroplated tool performance.
Current Density: One of Electroplating’s Most Critical Variables
Among all the factors that influence electroplated tool performance, current density is one of the most important and often least understood.

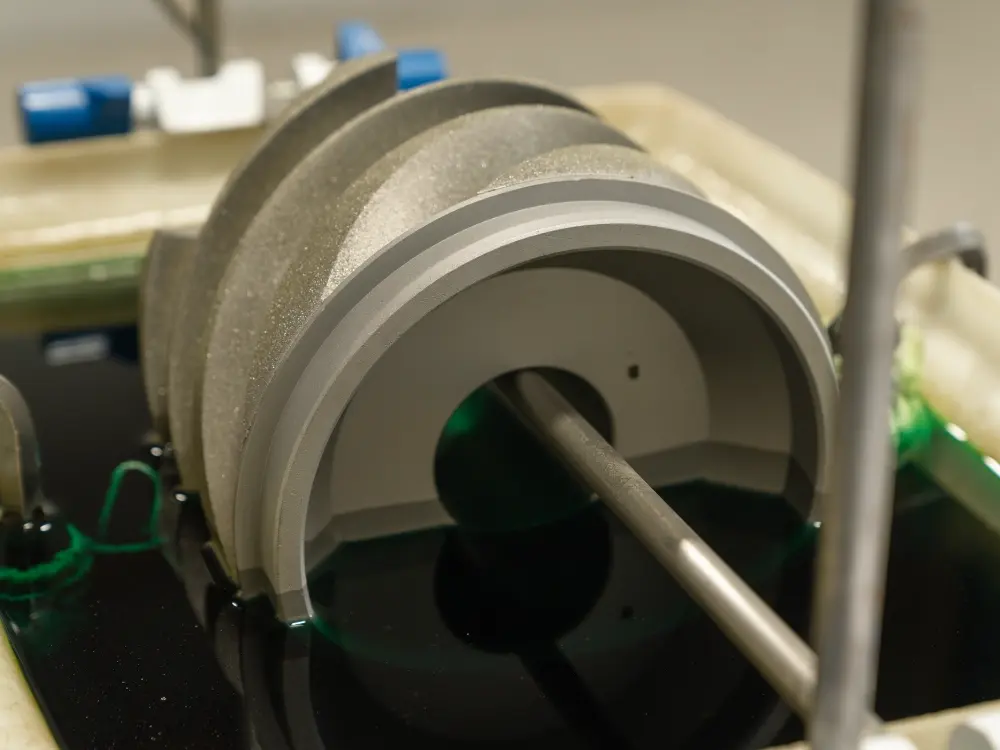

During electroplating, electrical current is used to deposit nickel that encapsulates the superabrasive particles and bonds them to the tool substrate. The amount of current applied must be carefully controlled throughout the plating cycle.
Proper current density directly influences how the nickel matrix forms around each Diamond or cBN particle. Consistent encapsulation promotes uniform superabrasive retention, predictable grinding performance, and repeatable tool life.
Each mesh size requires a specific combination of current density, amperage, and plating time to achieve proper nickel encapsulation. When these variables are precisely controlled, the result is a more consistent superabrasive layer and more predictable tool performance.
Maintaining this level of control becomes difficult in batch-plating environments where multiple products are processed simultaneously. Different products and mesh sizes often require different plating parameters, making it challenging to optimize current density, amperage, and plating time for every tool in the batch. In many cases, the plating process relies heavily on operator judgment to determine when plating is complete.
Individually controlled plating systems allow current density, amperage, and plating time to be established for each specific product and mesh size. When supported by rectifiers capable of measuring and controlling output to thousandths of an ampere, tighter process control can be maintained throughout the plating cycle. The result is more consistent nickel encapsulation, improved superabrasive retention, and greater repeatability from one tool to the next.
Inspection Standards Can Vary Significantly
Not all electroplated tools receive the same level of inspection before shipment.
Inspection practices may range from basic visual checks to comprehensive individual evaluations using magnification and precision measurement equipment. While inspection cannot correct manufacturing errors, it can identify conditions that may negatively impact grinding performance before a tool reaches the customer.
One of the primary objectives of high-magnification inspection is verifying mesh size integrity and superabrasive purity. Diamond and cBN particles are available in many mesh sizes, grades, and crystal types. Under magnification, inspectors can identify particles that do not belong within the specified mesh size range, unintended mixing of Diamond and cBN, or contamination from other superabrasive types.
When incorrect mesh sizes or mixed superabrasives are present, grinding performance becomes unpredictable. Surface finish, wheel wear, cutting action, and tool life may all be affected. In critical applications, these conditions can render the tool unsuitable for production use.
Inspection also verifies profile conformity. Once the superabrasive has been properly dispersed and the electroplating process is complete, the finished form or contour of the wheel must match the intended geometry. Regardless of the quality of the Diamond or cBN, an incorrectly formed tool cannot consistently produce the required part geometry.
Foreign contamination is another condition that can often be detected through inspection. Contamination may originate from improperly cleaned equipment, shared handling tools, improperly cleaned plating containers, or processing systems that do not adequately separate Diamond, cBN, mesh sizes, or crystal types. Even small amounts of contamination can influence grinding performance and consistency.
Ultimately, inspection serves as a final verification that the manufacturing process has been executed correctly. While microscopic inspection provides valuable information, the true measure of success remains the customer’s ability to consistently produce parts that meet dimensional, surface finish, and performance requirements.
Manufacturing Discipline Drives Performance Consistency
When engineers compare electroplated tools from different suppliers, performance differences are rarely caused by a single factor.
Instead, the final result is influenced by the cumulative effect of manufacturing decisions made throughout the process.
Superabrasive quality, contamination control, current density management, inspection procedures, and overall manufacturing discipline all contribute to the finished product.
Looking Beyond the Specification Sheet
A specification sheet can provide valuable information about dimensions, superabrasive type, and mesh size, but it rarely tells the entire story.
The manufacturing methods used to produce an electroplated tool often have a substantial impact on its real-world performance.
For manufacturers seeking reliable grinding, cutting, and finishing results, understanding the processes behind the product is just as important as understanding the product itself.
Electroplated tool performance is ultimately a balance between superabrasive retention and superabrasive exposure. Both are determined by the precision with which the plating process is controlled.
In the world of electroplated Diamond and cBN tooling, consistency is not an accident. It is the result of process control, manufacturing discipline, and a commitment to producing the same level of quality every time.
